EX NAME: MV BBC TOURMALINE - IMO NO: 9504803
CLASS NOTATION: GL+ 100 A5 E3 BWM IW "Heavy Lift Vessel", SOLAS 11-2, Reg. 19 + MC AUT E3
"Equipped for Carriage of Containers"
"Equipped for Transport of Heavy Cargo"
LBD: 153.80 / 145.50 X 23.20 X 12.80 M
DWT: ABT 14000 ON DRAFT 8.50 M
GRT: ABT 13,200
KEEL LAID: OCT / 2008
LAUNCHED: OCT / 2013
BOX SHAPE / TWEEN DECKER
2 HOLD / 2 HATCH
HATCH COVER: PONTOON TYPES
HOLD CAPACITY 19,600 CBM
CONTAINER CAPACITY:
387 TEU / 185 FEU IN HOLD
598 TEU / 272 FEU ON DECK
TOTAL 985 TEU / 457 FEU
REEFER PLUG:30 SETS / ON DECK

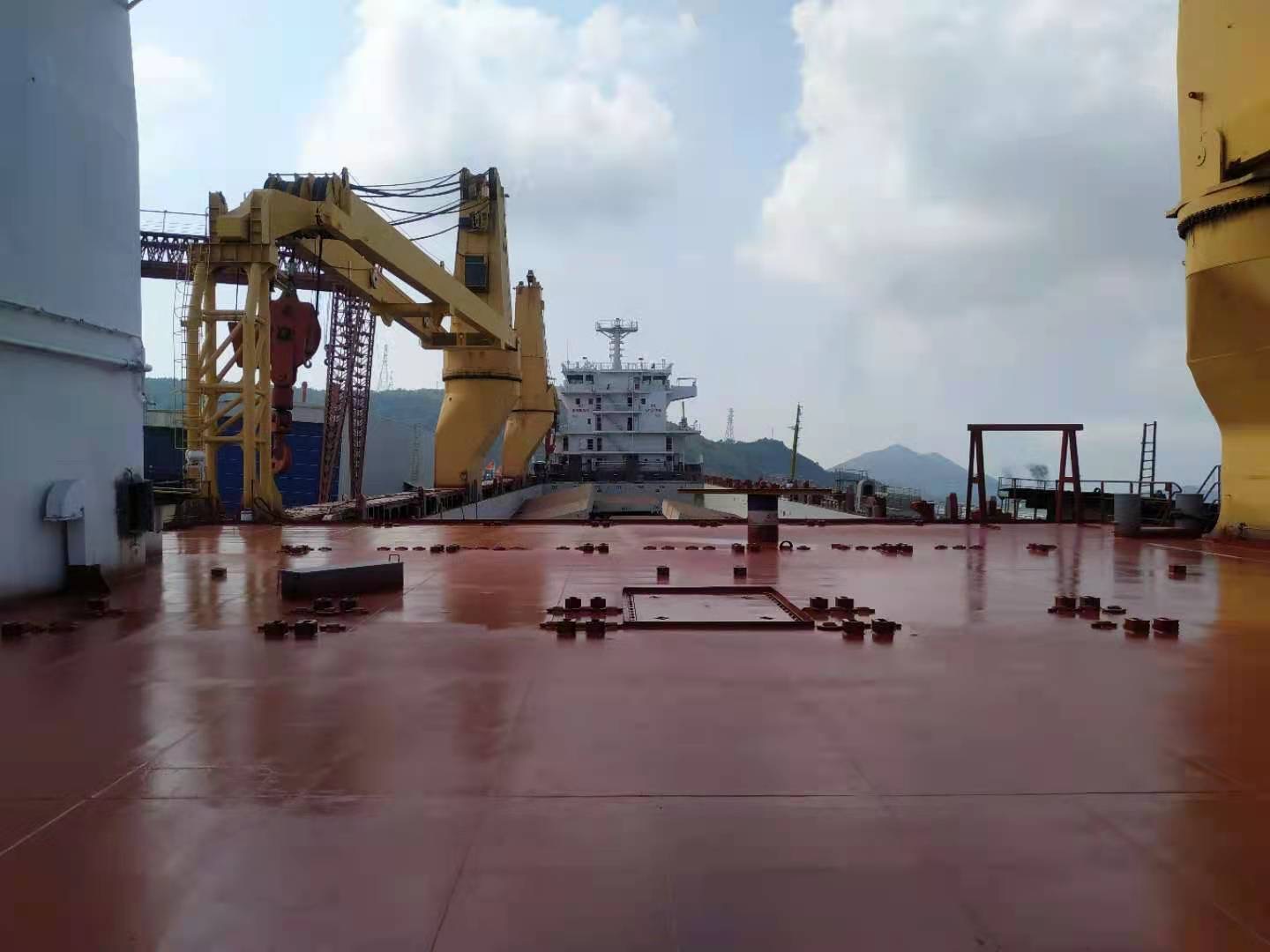

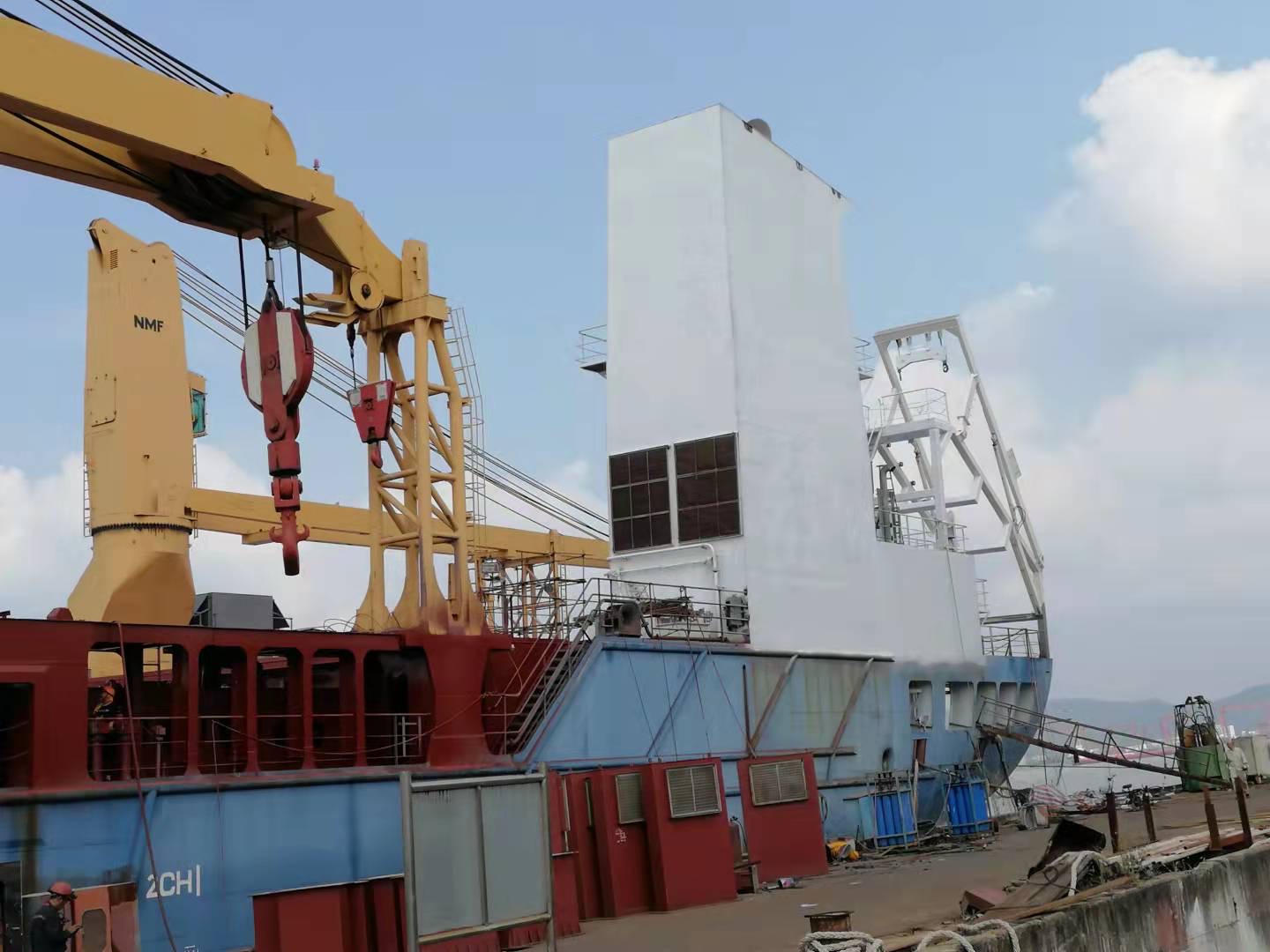

CRANE SWL 400T X 2(can combine)
FRESH WATER TANKS: 90 M3
HEAVY OIL TANKS: 15,00 M3
MDO TANKS: 200 M3
LUBRICATING OIL TANKS: 70 M3
M/E: MAN 6S46MC-C,8280KW@129RPM X 1
A/E: YANMAR,6N18AL-SV,970KW/720RPM x 3SETS
BOW THRUSTER: 900 KW
SPEED: 17.5 KNOTS
COMPLEMENT: 21 P
ENDURANCE: 35 DAYS
BWMS: LEESGREEN
LOCATION: CHINA MAINLAND
